Right Angle Folder for FD390

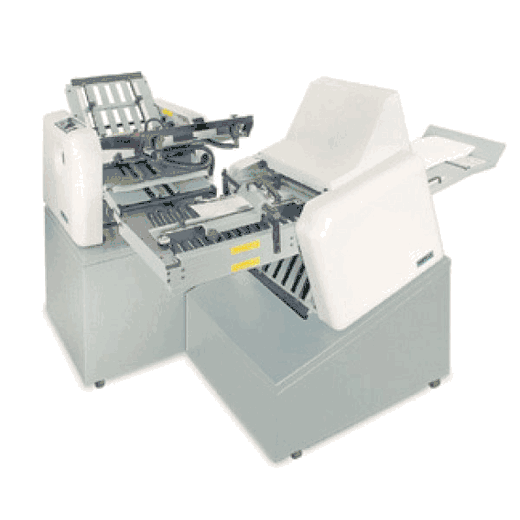

The FD 396 is combined with the FD 390 air feed machine to create a 2 machine system for the single purpose of creating a right angle or cross fold (fold once in half, then fold again from the side) in one pass. It would require 2 passes if done on one machine.

The Formax FD396 folder is designed for high volume jobs, it is typically used to create a folded brochure, calendar or a self mailer. It will fold the paper the long way in half, and then fold the folded sheet in half or thirds from the side. The first fold is limited to a half fold. The second fold is limited to either a half or letter fold. So for example, you can fold a piece of 11 x 17 inch paper into a piece 8.5 x 3.75. or 8.5 x 5.5 inches. Microadjustment knobs are used to fine-tune the stopper position making crisp and accurate folds every time. The FD 396 can handle a wide variety of paper sizes and weights, including glossy and coated papers. It is designed by the manufacturer to process up to 500,000 sheets per month. Optional perforator/scorer available.

SPECIFICATIONS FOR THE FD396 ONLY; ADD THE FD390 SPECS FOR THE COMPLETE SYSTEM:

Feed: Automatic (1 sheet) - Manual up to 4 sheets

Paper sizes: 3.5 x 5 to 14 x 20

Paper weight: Up to 65 lb cover (Suitable for coated/glossy paper)

Capacity: Up to 350 sheets of 20 lb bond

Folds: C fold, Z fold, double parallel, half, French (cross) in one pass.

Speed: Up to 580 single sheets per minute

Dimensions: 24.5W X 49D x 27H

Weight: 310 lbs

Power: 115V, 60Hz
